Premium Motorized & Bioclimatic Pergola Systems
Custom fabricated using 6063-T6 architectural extruded aluminum profiles. Designed for residential outdoor living, commercial hospitality venues, and heavy coastal weather exposures across Sydney.

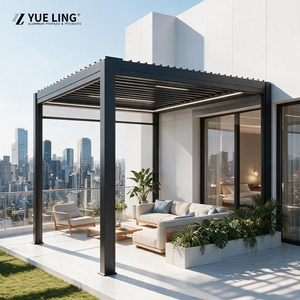

100% Waterproof Motorized Louvered Roof Aluminium Pergola
- 6063-T6 Heavy-Duty Extruded Aluminium
- 100% Internal Gutter Drainage System
- Somfy Motorized Louver Actuation

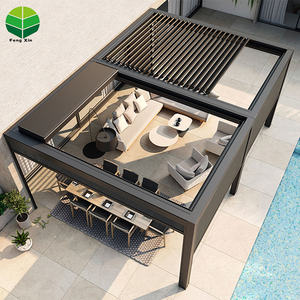

Motorized Retractable Aluminium Folding Shade System
- Full Retractable Folding Louver Blade Design
- Smart Rain & Wind Sensor Automation
- Architectural Powder Coating (Qualicoat 2)

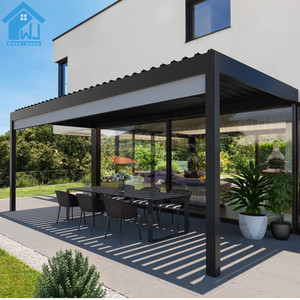

Bioclimatic Custom Heavy-Duty Outdoor Aluminium Gazebo
- Modular Sizes: 6x4m, 9x4m, 5x3m & Bespoke
- AS 1170 Wind Load Rated (Up to 180 km/h)
- Integrated Perimeter LED Strip Lighting

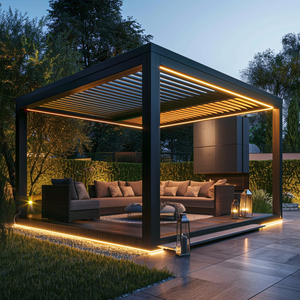

Modern Patio Bioclimatic Modular Louvered Canopy System
- Sleek Concealed Structural Fasteners
- Dual-Blade Acoustic & Thermal Insulation
- Compatible with Zip Screens & Glass Doors

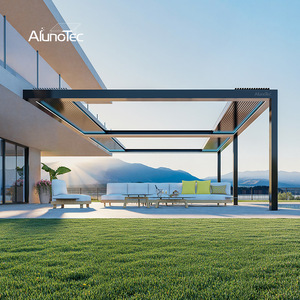

Advanced Rotating & Retractable Dual-Action Roof Pavilion
- 135° Louver Rotation + 100% Full Retraction
- Marine-Grade Anodized / Powder Coated Alloy
- Integrated Smart Home App & Voice Control

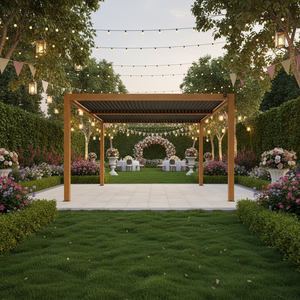

Commercial Remote-Controlled Aluminium Louver Pergola
- Direct Wholesale Factory Manufacturing Pricing
- Heavy Structural Beam Profiles (200mm x 50mm)
- Multi-Channel Wireless Remote Control
Customizable Eco-Friendly Bioclimatic Commercial Pergola
- 100% Recyclable High-Strength Aluminium Alloy
- Custom RGB Ambient & Downlight Integration
- Optional Wind-Sensing Auto Closers
Architectural Louvered Roof System (Custom Dimensions)
- Freestanding or Wall-Mounted Configurations
- Zero Visible Water Drainage Outlets
- Tested to Resist Extreme Thermal Expansion
Engineering Excellence for Sydney’s Outdoor Architecture
An in-depth guide for architects, building contractors, property developers, and high-end residential homeowners seeking long-term structural integrity in coastal Australian environments.
Designing outdoor shaded structures for Sydney’s unique geography requires far more than aesthetic appeal. The Greater Sydney region spans demanding microclimates—from severe marine corrosion and high salt-spray conditions in the Eastern Suburbs and Northern Beaches, to sudden meteorological events such as intense summer heatwaves (exceeding 40°C in Western Sydney), microburst rainstorms, and high-velocity wind gusts known locally as "Southerly Busters."
As a specialized OEM/ODM pergola systems manufacturer and direct factory supplier, our engineering framework integrates high-tensile 6063-T6 structural aluminum extrusion alloys, precision CNC fabrication, and fully integrated hydraulic drainage channels. Unlike standard residential timber pergolas that warp, rot, and require seasonal repainting, or light-gauge imported steel structures prone to joint rust, our architectural bioclimatic louvered roof systems offer zero-maintenance structural endurance designed to comply with Australian Standards (AS/NZS 1170 Structural Design Actions and AS/NZS 1664 Aluminum Structures).
Dual-Skin Aerofoil Louvers
Our engineered hollow dual-skin louver blades provide exceptional rigidity over spans up to 6 meters. The internal air chamber acts as a natural thermal buffer, reducing radiant heat transmission into the patio area by up to 12°C during peak Sydney summer radiation.
Concealed Perimeter Drainage
Water is directed seamlessly into deep-perimeter internal aluminum gutters built directly into the main frame beams. Integrated downpipes inside the structural support posts evacuate heavy rainfall up to 120 mm/hour with zero external splashback or visible piping.
Marine-Grade Finish (C4/C5)
Pre-treated with chromate-free conversion coatings and electrostatically finished with AkzoNobel or Dulux Class 2 architectural powder coating. Tested for 2,000+ hours of continuous salt-spray exposure (ISO 9227) without peeling, chalking, or blistering.
Smart Automated Actuation
Powered by IP67-rated 24V DC tubular motors featuring silent planetary gearboxes. Systems integrate seamlessly with Somfy Tahoma, Bond Bridge, and Zigbee/Z-Wave smart home hubs for automated rain, wind, and temperature-based blade positioning.
Structural Modular Spans
Engineered with oversized 200mm x 50mm or 250mm x 60mm structural posts and ring beams. Freestanding, wall-attached, or overhead roof-integrated configurations allow multi-bay linkage for unlimited square meter coverage.
Acoustic Sound Dampening
Extruded rubber gasket seals line the perimeter blade contact edges. When fully closed, the system forms a tight weather barrier that reduces impact noise from torrential rainfall by up to 15 dB compared to single-skin sheet metal covers.
Extruded Aluminium vs. Alternative Outdoor Structure Materials
Why Tier-1 commercial developers and custom home builders in Sydney specify factory-engineered 6063-T6 louvered systems over traditional building methods.
| Structural Specification Parameter | Our Factory Aluminium Louver Systems | Traditional Timber Pergola | Standard Steel / Iron Pergola | Generic Low-Cost Import Units |
|---|---|---|---|---|
| Structural Material & Alloy | 6063-T6 Architectural Aluminium | Treated Softwood / Hardwood | Galvanized Mild Steel | Thin-gauge Recyclate Aluminum (6061/T4) |
| Coastal Corrosion Resistance (C5 Zone) | ✓ Exceptional (2,000+ Hr Salt Spray) | ✗ Prone to Rot & Termites | ✗ Rusts at Welds & Cut Edges | ✗ Low-grade Coating Flakes < 2 Yrs |
| Dynamic Thermal Control | ✓ 0° to 135° Adjustable Louvers | ✗ Fixed Shade (0% Control) | ✗ High Heat Retention Under Metal | ✗ Manual Crank / Sticking Louvers |
| Wind Load Rating Compliance | ✓ Engineered to AS 1170.2 (180 km/h) | Variable (Depends on Carpenter) | High Strength (Heavy Weight) | ✗ Fails at > 90 km/h Gusts |
| Internal Rain Gutter Capacity | ✓ 100% Perimeter Gutter + Post Drain | ✗ External Gutters Required | ✗ External PVC Gutters Needed | ✗ Shallow Channels Overflow Quickly |
| Maintenance Lifecycle | Zero Maintenance (Soap & Water Wash) | Requires Sanding & Oil Every 12 Mo | Requires Anti-Rust Touch-ups | Frequent Gear/Louver Replacements |
Tailored Applications for Sydney Microclimates & Urban Spaces
From waterfront residential decks to urban rooftop hospitality venues, our factory delivers bespoke pergola solutions custom-measured to project dimensions.
Coastal Residential Developments (Mosman, Vaucluse, Manly)
Salt spray and high atmospheric moisture cause rapid degradation of conventional metalwork. Our marine-grade anodized and 60-micron powder-coated louvered roof systems protect luxury oceanfront patios, providing solar control while standing firm against saltwater exposure.
Commercial Hospitality & Dining (Darling Harbour, Barangaroo)
Maximize year-round outdoor floor capacity for cafes, restaurants, and hotel bars. Integrated motorized Zip screens, dimmable LED spot lighting, and radiant infrared heaters allow venues to operate comfortably in all four seasons regardless of rain or cold wind.
Suburban Alfresco Expansions (Parramatta, Hills District, Penrith)
Western Sydney experiences extreme ambient summer temperatures. Our double-wall insulated louvers drop patio temperatures dramatically while seamlessly extending interior living rooms into fully sheltered alfresco dining suites.
NSW Exempt Development Compliance Ready
Engineered to suit height, setback, and structural footprint guidelines under the NSW State Environmental Planning Policy (Exempt and Complying Development Codes). Simplifies or eliminates lengthy local council DA approval processes.
Why Partner Direct with Our Pergola Manufacturing Hub?
By bypassing middleman trading entities, our trade partners enjoy complete custom engineering, precision quality assurance, and uncompromised wholesale pricing.
1. Complete CAD & BIM Project Engineering
Our in-house architectural engineering team provides 3D CAD models, structural shop drawings, and elevation layouts for every custom project. We assist builders and architects with precise footings, structural tie-in details, and electrical conduit routing before extrusion cutting begins.
2. Fully Automated CNC Fabrication Line
Utilizing high-precision 5-axis CNC machining centers, every aluminum post, beam, and louver profile is cut, drilled, and tapped with sub-millimeter tolerances. This ensures flawless fitment during site assembly, drastically cutting on-site installation labor time for Sydney trade contractors.
3. Rigorous Quality Control & Pre-Assembly
Every motorized louver system undergoes a 100% pre-assembly cycle on our factory floor before packing. Motor torque calibration, louver closure seal tightness, internal gutter flow testing, and wireless sensor synchronization are tested and certified prior to international crating.
4. Export-Grade Protective Wooden Crating
Components are wrapped in protective polyethylene foam, corner-bound with heavy-duty guards, and packed inside steel-reinforced fumigated plywood crates. Parts are individually coded and indexed against installation schematics to ensure organized unpacking on site.
5. Standard & Bespoke Architectural Colors
Choose from standard high-demand architectural hues—such as Matte Black (RAL 9005), Anthracite Grey (RAL 7016), Traffic White (RAL 9016), and Monument—or request custom Dulux color matching to align with existing window joinery and building facades.
6. Factory Direct Pricing & Volume Discounts
Benefit from structural direct factory sourcing. Whether you are importing container loads for regional distribution or procuring custom project-specific units for high-end residential builds, our factory provides aggressive tiered pricing structure.
Frequently Asked Questions by Sydney Buyers & Contractors
Comprehensive answers regarding compliance, manufacturing lead times, wind engineering, and installation support.
