Premium Certified Window Wall & Glazing Systems
Rigorously tested to NFRC, TUV, and ASTM standards. Sourced directly from China's leading architectural aluminum extrusion facilities.

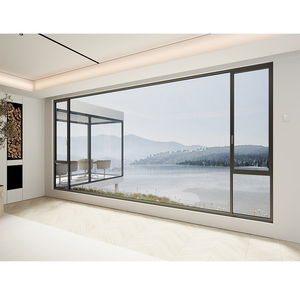

Passivhaus Laminated Glass Apartment Window Wall
- U-Factor: ≤ 0.8 W/m²K
- Acoustic Rating: STC 45 dB
- PA66-GF25 Thermal Break

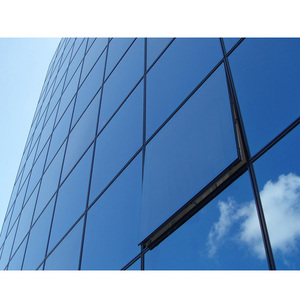

Double Glazed Architectural Aluminum Curtain Wall Facade
- Air Infiltration: ASTM E283
- Water Resistance: 750 Pa
- Reflection Coating Options

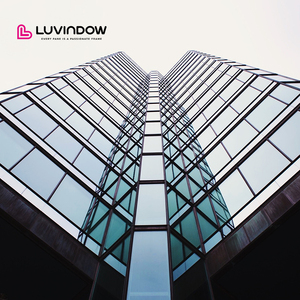

Commercial Integrated Stone Facade & Glass Window Wall Panel
- Slab-to-Slab Structural Mount
- Heavy Wind Loading Design
- Modular Unitized Assembly
Reinforced Heavy Load Window Wall Profile (TUV/NFRC Verified)
- Alloy Grade: 6063-T6 / 6061-T6
- Structural Deflection: L/240
- Heavy-Duty Shear Block Joints

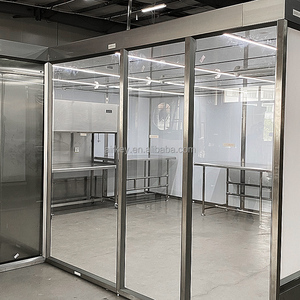

ISO14644 Modular Cleanroom Flush Tempered Glass Window Wall
- ISO Class 5-8 Compliance
- Flush Surface Double Glazing
- Anti-Condensation Sealant

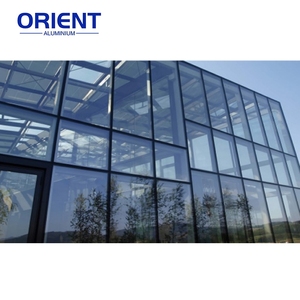

Customized Exterior Tempered Glass Architectural Window Wall
- AAMA 2605 Powder Coating
- Custom Mullion Depths
- Integrated Slab Edge Covers

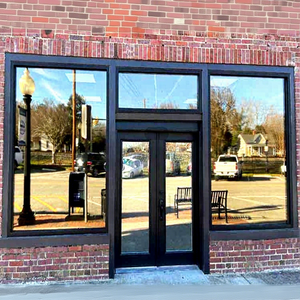

Commercial Aluminum Storefront Fixed Picture Glass Window System
- Tinted / Low-E Mirror Glass
- High-Traffic Threshold Design
- Impact Resistance Tested

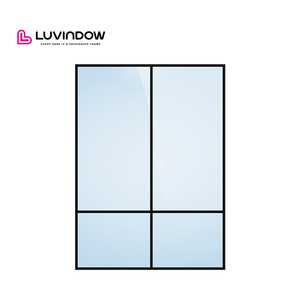

Energy Efficient Panoramic View Thermal Break Window Wall
- Extreme Wind Pressure: 5000 Pa
- Panoramic Slim Sightlines
- Multi-Point EPDM Gaskets
The Architectural Evolution of Window Wall Systems in Modern Global Construction
In contemporary multi-family residential and mixed-use commercial developments, the selection of the building envelope system is a critical engineering decision that dictates energy efficiency, structural integrity, acoustic performance, and total capital expenditure. As developers and architectural firms strive for net-zero carbon targets and optimized construction timelines, China top window wall factories and suppliers have emerged as pivotal partners in delivering ultra-high-performance architectural facades.
Unlike traditional stick curtain wall systems that span continuously across concrete floor slabs, a professional window wall system sits directly between the concrete slabs. By resting on the floor below and anchoring to the underside of the slab above, window walls effectively isolate inter-story drift, drastically simplify acoustic dampening between vertical units, and lower installation labor expenses by up to 35%.
Why Global Contractors Partner with Our China Manufacturing Hub
Integrating metallurgical alloy engineering, precision thermal break insertion, and computerized structural simulation under one ISO-certified roof.
Advanced Extrusion Alloys
We utilize primary 6063-T6 and 6061-T6 structural aluminum billets with high tensile strength and superior corrosion resistance, engineered to handle extreme wind shear and seismic displacement.
Polyamide Thermal Barriers
Incorporating imported PA66-GF25 (25% glass fiber reinforced polyamide) thermal strut technology, preventing heat conduction and achieving structural U-factors as low as 0.28 BTU/hr·ft²·°F.
Qualicoat & AAMA Finishes
State-of-the-art vertical powder coating and anodizing lines delivering AAMA 2605 fluoropolymer (PVDF) surface treatments guaranteed against chalking, fading, and coastal salt spray for up to 30 years.
BIM LOD 400 Integration
Our in-house facade engineering team converts architectural CAD designs into precise LOD 400 BIM models, ensuring absolute zero-clash fabrication and effortless job-site assembly.
Global Certification Standard
Fully certified under NFRC thermal performance standards, TUV verification, ASTM E283/E331/E330 physical testing, ISO 9001 quality management, and CE EN 13830 facade compliance.
Container Optimization & Crating
Heavy-duty protective wood/steel frame packaging with serialized unit labeling by floor level, optimizing container volume and reducing on-site sorting time by 60%.
Window Wall vs. Curtain Wall vs. Storefront Systems
A quantitative comparison matrix designed for structural engineers, facade consultants, and procurement executives.
| Performance Parameter | Architectural Window Wall | Unitized Curtain Wall | Commercial Storefront |
|---|---|---|---|
| Structural Mounting | Slab-to-slab anchor (Floor set) | External continuous slab bypass | Ground floor span (< 10 feet) |
| Relative Cost Index | Baseline (Economical) | +35% to +60% Higher | -20% Lower (Low Rise Only) |
| Acoustic Isolation (STC) | STC 42 - 48 dB (Slab breaks noise) | STC 38 - 44 dB (Requires spandrel acoustic barrier) | STC 30 - 35 dB |
| Air Infiltration (ASTM E283) | < 0.06 cfm/ft² @ 6.24 psf | < 0.06 cfm/ft² @ 6.24 psf | < 0.09 cfm/ft² @ 1.57 psf |
| Water Resistance (ASTM E331) | 12 PSF to 15 PSF (570-720 Pa) | 15 PSF to 20 PSF (720-1000 Pa) | 6 PSF to 8 PSF (290-380 Pa) |
| Installation Velocity | High (Glazed from interior/no crane needed) | Medium (Requires heavy crane/rigging) | Fast (Low complexity) |
| Thermal Break Tech | Polyamide PA66-GF25 Structural Strut | Polyamide PA66 / PVC Thermal Isolator | Pour & Debridge Polyurethane |
Key Industry Trends Reshaping Window Wall Procurement
1. Decarbonization & Low-Carbon Aluminum
Global procurement standards now mandate verified Environmental Product Declarations (EPD). Modern Chinese suppliers are shifting toward hydro-powered aluminum smelting, yielding profile extrusions with embodied carbon levels below 4.0 kg CO₂/kg Al compared to the global average of 16.0 kg CO₂/kg Al.
2. Triple-Pane Vacuum Insulated Glass (VIG)
The integration of VIG into thermal break window walls provides center-of-glass thermal insulation reaching U-factors of 0.10 BTU/hr·ft²·°F (0.57 W/m²K), rivaling solid insulated walls while retaining full floor-to-ceiling glass transparency.
3. Prefabricated Slab Edge Covers & Flashings
To deliver a continuous, sleek curtain-wall appearance without the continuous system price tag, window walls are increasingly specified with factory-integrated extruded aluminum slab edge covers, complete with dynamic thermal expansion joints and pre-applied EPDM moisture barriers.
Frequently Asked Questions for Sourcing Window Walls from China
Addressing key technical, commercial, and engineering questions raised by international general contractors and developers.
Ready to Engineer Your Next Building Facade?
Send your architectural CAD drawings, elevation schedules, or tender specifications. Our senior facade engineering team will deliver a comprehensive structural review, thermal performance estimate, and factory-direct commercial quotation within 48 hours.
