Istanbul, Türkiye · Aluminium Industry Insights
Technical insights, specification guidance and B2B export knowledge from the Afes Aluminium team.
Explore our top-tier CE-certified thermal break aluminium windows, heavy-duty sliding doors, and hurricane-impact resistant fenestration systems manufactured under European EN 14351-1 standards.
In modern B2B architectural procurement, selecting CE certified glazing systems factories and suppliers is not merely a legal formality; it is the fundamental benchmark for structural integrity, energy compliance, and risk mitigation across European, Middle Eastern, and North American construction sectors. Under the Harmonized European Standard EN 14351-1 (for windows and external pedestrian doorsets) and EN 13830 (for curtain walling systems), CE marking signifies that a manufacturing facility operates under rigid Factory Production Control (FPC) systems audited by accredited Notified Bodies.
When procurement directors, façade engineers, and general contractors source thermal break aluminium fenestration systems, verified Information Gain relies on dissecting specific mechanical attributes rather than relying on generic product claims. A fully compliant CE-marked glazing package must provide an official Declaration of Performance (DoP) documenting five critical engineering parameters:
Calculated in accordance with EN ISO 10077-1 and EN ISO 10077-2. High-performance systems utilize multi-chamber structural polyamide strips (PA66 GF25 reinforced with 25% glass fiber) to achieve frame values ($U_f$) under $1.3 \text{ W/m}^2\text{K}$, enabling total window values ($U_w$) below $0.8 \text{ W/m}^2\text{K}$ for Passive House standards.
Verified via EN 12207 (Air Permeability up to Class 4, 600 Pa) and EN 12208 (Watertightness up to Class E1500, static/dynamic water pressure tests). Dual-component EPDM continuous gasket loops prevent micro-leakage under severe weather events.
The fenestration sector is undergoing a massive shift driven by strict net-zero carbon mandates, advanced material science, and automated building envelopes.
Traditional triple glazing increases dead load on structural hinges and sash rollers. The industry is rapidly adopting Vacuum Insulated Glass (VIG), which achieves thermal resistance equivalent to $0.40 \text{ W/m}^2\text{K}$ in a profile thickness of just 8.3mm. Combined with Aerogel-filled profile insulation cavities, frame sightlines can be narrowed by up to 35% without sacrificing thermal performance.
Commercial curtain walling systems (EN 13830) are evolving into active power-generation units. Building-Integrated Photovoltaics (BIPV) embedded within spandrel zones generate clean power, while low-voltage Electrochromic Dynamic Tinting adjusts Light Transmittance ($VLT$) and Solar Heat Gain Coefficient ($SHGC$) dynamically, reducing HVAC cooling loads by up to 28% annually.
Modern villa and commercial facade architecture demands maximum glass ratios. New structural sliding systems utilize concealed outer frames recessed into floor tracks, paired with ultra-slim interlocks under 20mm wide. Structural silicone bonding (ETAG 002 compliant) transfers wind pressure directly to the aluminium sash, allowing single glass panel heights exceeding 4.5 meters.
| Glazing System Type | Profile Thermal Barrier | Glazing Unit Build-Up | Max Wind Load (EN 12210) | Target U-Value ($U_w$) |
|---|---|---|---|---|

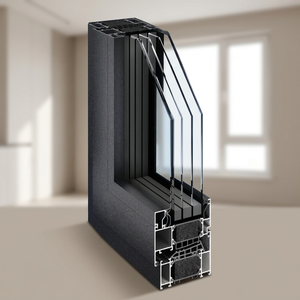

| Passive House Aluminium Window | 34mm PA66 GF25 Polyamide + Foam Infill | 44mm Triple Low-E (4-16Ar-4-16Ar-4) | Class C5 (2000 Pa) | 0.75 - 0.85 W/m²K |
| Hurricane Impact Sliding Door | 24mm Heavy Duty Polyamide Strip | 32mm Double Laminated Impact Glass | Class C5 (3000 Pa Peak) | 1.3 - 1.5 W/m²K |
| Unitized Curtain Wall System | Integrated Thermally Broken Pressure Plate | 36mm Double Silver Low-E Double Glazed | Class E2400 (Structural) | 1.1 - 1.3 W/m²K |
| Minimalist Sliding Villa Door | Sub-Floor Recessed Insulation Channel | 38mm Double Tempered Solar Control | Class C4 (1600 Pa) | 1.1 W/m²K |
How global general contractors, real estate developers, and architectural procurement managers are optimizing window and door supply chains in 2025 and beyond.
Global developers are shifting away from sole-source reliance on single manufacturing territories. Sourcing CE certified glazing packages from primary manufacturing hubs in Istanbul and Türkiye's industrial clusters offers significant strategic advantages: rapid shipping lead times via Mediterranean shipping routes, competitive labor cost-efficiency, and strict adherence to European standards (EN 1090 structural steel/aluminium fabrication, ISO 9001, ISO 14001).
Procurement is no longer executed using static 2D CAD files. Leading suppliers deliver exact Building Information Modeling (BIM) objects at Level of Development 350 to 400. This enables main contractors to conduct automated clash detection against structural concrete frames, verify anchoring tolerances, and pre-plan hoisting mechanics prior to container shipping.
To eliminate color discrepancies (powder coating batch variations) and hardware incompatibilities, buyers increasingly bundle windows, entrance pivot doors, sliding units, and ground-floor stick curtain walls under a single unified supply contract. This guarantees uniform anodizing/RAL powder coating standard (Qualicoat Class 2 / Qualanod) across the entire building envelope.
Under European Green Deal requirements and LEED/BREEAM rating systems, suppliers must provide Environmental Product Declarations (EPD). Modern aluminium window factories utilize low-carbon primary billets smelted using renewable hydro-energy, paired with post-consumer recycled aluminium (up to 75% recycled content) to lower embodied carbon content drastically.
From custom extrusion die engineering to containerized floor-level logistics, our Istanbul export operations deliver precision fenestration systems globally.
We utilize exclusively primary alloy 6063-T5 and structural 6061-T6 aluminium billets, ensuring tensile strengths exceeding $215 \text{ MPa}$ for extreme structural wind loads.
Our automated electrostatic powder coating lines hold Qualicoat Class 2 accreditation, providing 30+ year resistance against salt-spray corrosion, UV fading, and chalking in severe marine environments.
Products are individually shrink-wrapped, wooden-crated, and grouped by floor level or elevation code. Shipments are issued under EXW, FOB, or CIF Incoterms with full origin documentation.
In-depth structural and architectural plan evaluation in English, reviewing opening schedules and wind load requirements.
Thermal calculations using THERM simulation software to verify targeted U-values and glass cavity configurations.
Transparent B2B breakdown detailing profile series, glass spec, hardware brands (Siegenia, Roto, G-U), and Incoterms.
Precision cutting, corner crimping, gasket insertion, and quality audit under Factory Production Control (FPC).
Protective wrapping, steel-crated packaging, and container optimization to prevent shipping transit damage.
Remote guidance, shop drawing clarification, and spare hardware packs dispatched for smooth site assembly.
Clear, authoritative answers to essential technical and commercial questions raised during international B2B glazing procurement.
Every shipment includes an official Declaration of Performance (DoP) referencing standard EN 14351-1 (for windows/doors) or EN 13830 (for curtain walls), Factory Production Control (FPC) audit certificates, laboratory test reports for air/water/wind resistance, system technical datasheets, and full commercial export documentation (Certificate of Origin, Bill of Lading, Packing List grouped by floor level).
Non-insulated aluminium transfers heat rapidly ($K \approx 160 \text{ W/mK}$). Thermal break systems insert structural polyamide strips (PA66 GF25 reinforced with 25% glass fiber) between the inner and outer extrusions. Polyamide has a thermal conductivity of just $0.30 \text{ W/mK}$, preventing heat loss in cold climates, stopping solar heat gain in hot regions, and eliminating interior frame condensation.
Yes. For large commercial developments, residential complexes, or bespoke curtain wall applications requiring unique sightlines or structural mullion depths, our engineering team designs and cuts custom extrusion dies. Sample prototypes are produced, structurally tested, and finish-coated prior to full-scale extrusion runs.
We integrate premium European hardware brands such as Siegenia, Roto Frank, G-U, and Sobinco. Hardware configurations can be selected for standard side-hung opening, tilt-and-turn dual operation, heavy-duty lift-and-slide mechanisms (rated for sash weights up to 400 kg), or concealed RC2/RC3 anti-burglar security locking.
All aluminium frames are wrapped in protective polyethylene anti-scratch film. Glazing units and assembled windows are positioned upright inside heavy-duty custom steel/wooden A-frames, secured with polyester strapping and foam corner guards. Containers are loaded using weight-distribution software to prevent shifting during oceanic transit.
We calculate total window $U_w$ values by modeling frame geometry ($U_f$), glass center-of-glass performance ($U_g$), and linear thermal spacer coefficients ($\Psi$). By pairing 34mm multi-chamber polyamide thermal breaks with 44mm triple-pane Low-E glass filled with 90% Argon gas and Swisspacer warm-edge bars, we consistently achieve certified values as low as $0.78 \text{ W/m}^2\text{K}$.
Submit your elevation drawings, opening schedules, and technical requirements for a comprehensive technical evaluation and competitive commercial proposal from our Istanbul export engineering team.
